Digital Points Reward Kitchen Waste Smart Reverse Vending Machine Automatically

Product Description

Kitchen Waste Smart Automatic Garbage Seperation Robots Broken trash bag automatically

Brief Introduction :

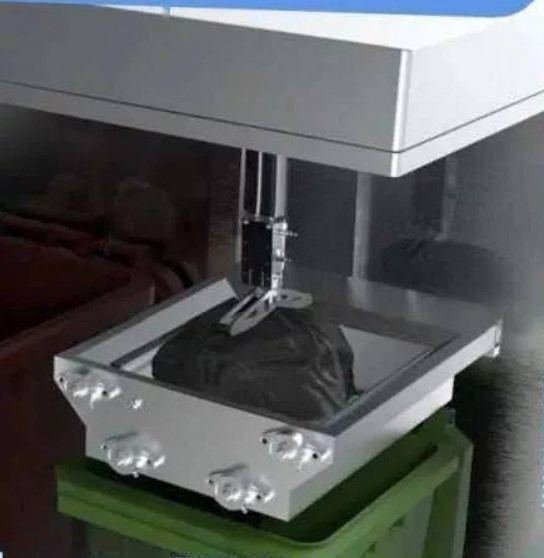

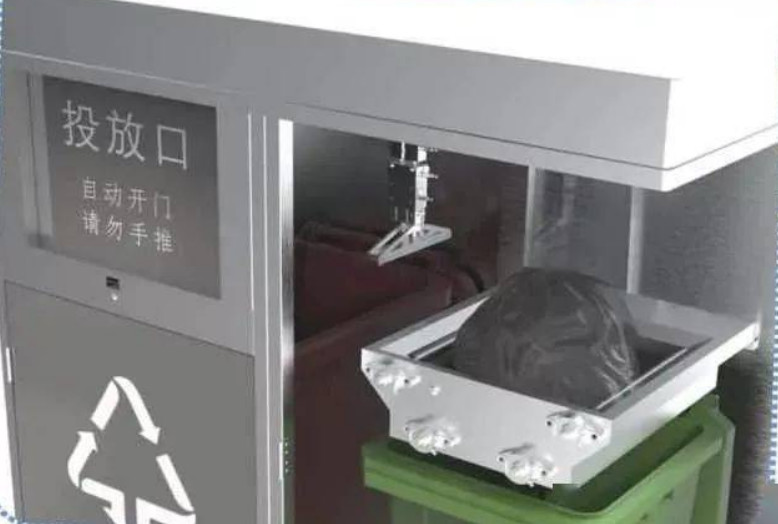

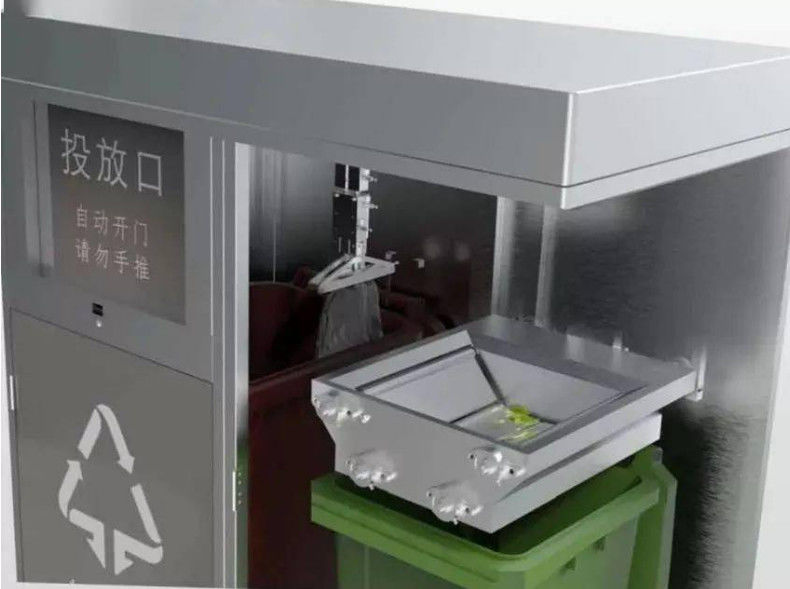

RVM-3600 Smart recycling machine (RVM) for a variety of commercial use, include 4 cabinets which suitable for recycle kitchen waste, recyclable waste, Non-Recyclable waste, harmful waste. Each cabinet equipped with sensing under the feed gate. Once the sensor sense the garbage bag, the feed gate automatically opens, the mechanical gripper will automatically grasp the top of the bag after the user put into the waste, and then the two serrated iron plates will be repeatedly opened and closed, tearing the garbage bag, so that the kitchen waste in the bag directly falls into the kitchen waste trash bin below, the mechanical gripper grabs the garbage bag back to its original position and automatically releases, and the garbage bag automatically falls into other garbage bin. The whole process complete within 10 seconds.

Remote management systems collect and foward the realt-time data to the cloud server.

Parameters:




Quick Detail:

1.  outdoor use, advertising by poster

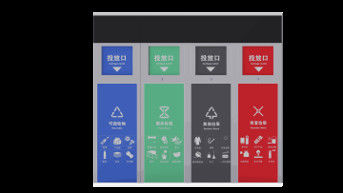

2.  4 cabinet suitable for recycable waste, non-recyclable waste, kitchen waste, harmful waste
3.  built in sensor under the feed gate for each cabinet
4.  mechanical gripper tears waste bag automatically
5.  storage capacity: 4pcs * 60L trash bin
6.  built in weight sensor
7.  reward digital points based on the weight of recycling
8.  Over flow alarms
9.  4 protections-OVP,SCP, RVP, RCD
10.  IP54 waterproof
11.  Support software integarted
12.  remote management system

More Designs


Management Platform


a . Introduction and samples





b. Management Center
